WHAT IS TRANSFORMER OIL TESTING?

Transformer oil testing is a crucial process in the maintenance and management of electrical transformers. Transformer oil, also known as insulating oil, serves two main purposes: it acts as an insulator to prevent electrical discharges between transformer windings and as a coolant to dissipate heat generated during operation. Over time, transformer oil degrades due to electrical, thermal, and environmental stresses, which can impact its performance and lead to transformer failure if not detected early. Testing the oil helps ensure that transformers operate safely, reliably, and efficiently, and aids in identifying maintenance needs.

KEY OBJECTIVES OF TRANSFORMER OIL TESTING

1.   To assess the insulating properties of the oil: Transformer oil must maintain a high dielectric strength to prevent electrical breakdowns.

2.   To detect contamination or degradation: Presence of moisture, sludge, gases, or acids in the oil indicates potential problems within the transformer.

3.   To ensure cooling efficiency: Oil with good thermal properties prevents the transformer from overheating, extending its life.

4. To predict potential faults: Early detection of oil degradation or abnormal test results can signal impending faults, allowing for preventive maintenance.

COMMON TYPES OF TRANSFORMER OIL TESTS

Transformer oil testing includes several specialized tests, each providing insight into different aspects of the oil's condition and the overall health of the transformer. Here are the most common types:

1. DIELECTRIC BREAKDOWN VOLTAGE TEST

• Purpose: Measures the oil’s ability to withstand electrical stress without breaking down.
• Importance: High dielectric strength ensures the oil can act as a reliable insulator
• testing method: A sample of oil is placed in a test cell with two electrodes, and a voltage is gradually increased until the oil breaks down (sparks). The voltage at breakdown is recorded as the dielectric strength. Lower dielectric strength indicates contamination or degradation.

2. DISSOLVED GAS ANALYSIS (DGA)

• Purpose: Detects gases dissolved in the oil, which can indicate electrical or thermal faults.
• Importance: Certain gases like hydrogen, methane, ethane, and acetylene are byproducts of electrical arcing, overheating, or insulation breakdown.

• Testing Method: The gas is extracted from the oil sample and analyzed using gas chromatography. The presence and concentration of specific gases can indicate types of faults such as overheating, arcing, or corona discharges.

3. MOISTURE CONTENT TEST (KARL FISCHER TITRATION)

• Purpose: Measures the amount of water in the transformer oil.
• Importance: Moisture decreases the dielectric strength of the oil and can lead to electrical breakdown, corrosion, and sludge formation.
• Testing Method: The Karl Fischer titration method is commonly used to measure moisture content with high accuracy. Elevated moisture levels indicate contamination from leaks, poor seals, or condensation.

4. INTERFACIAL TENSION (IFT) TEST

• Purpose: Measures the tension between oil and water, reflecting the oil’s purity.
• Importance: Low interfacial tension suggests that the oil is contaminated or deteriorating, often due to oxidation products.
• Testing Method: The IFT test measures the tension between a drop of oil and water. Low IFT values indicate impurities and potential degradation of oil quality.

5. ACIDITY OR NEUTRALIZATION NUMBER TEST

• Purpose: Determines the amount of acid in the oil, which is an indicator of aging.
• Importance: Acidity can cause corrosion of transformer components and lead to sludge formation, reducing heat dissipation efficiency.
• Testing Method: The oil sample is titrated with a base to determine its acid content, with higher acidity suggesting oxidation and degradation.

6. FURAN ANALYSIS

• Purpose: Detects furanic compounds in the oil, which indicate the degradation of cellulose-based paper insulation.
• Importance: The presence of furans is a sign that the transformer’s paper insulation is degrading, which can compromise transformer life and performance.
• Testing Method: High-performance liquid chromatography (HPLC) is used to analyze furans in the oil sample. Elevated furan levels correlate with paper insulation aging.

7. FLASH POINT AND FIRE POINT TEST

• Purpose: Determines the temperature at which the oil ignites.
• Importance: This is critical for assessing fire risk, as transformer oil is flammable. A high flash point indicates that the oil is less likely to catch fire under normal operating conditions.
• Testing Method: Oil is heated gradually, and its flash and fire points are recorded. A decrease in flash point can indicate contamination or aging.

8. POWER FACTOR OR DISSIPATION FACTOR TEST

• Purpose: Measures the dielectric losses in the oil under alternating current (AC) conditions.
• Importance: A low power factor indicates that the oil has good insulation properties. An increase may indicate contamination or moisture.
• Testing Method: A power factor test set is used to measure the loss in insulation under AC voltage. Higher power factor readings suggest degraded oil quality.

9. SLUDGE CONTENT TEST

• Purpose: Determines the amount of sludge in the oil.
• Importance: Sludge results from oil oxidation and reduces heat dissipation, potentially leading to overheating and component damage.
• Testing Method: The sludge content is assessed by filtering the oil and weighing the residue.

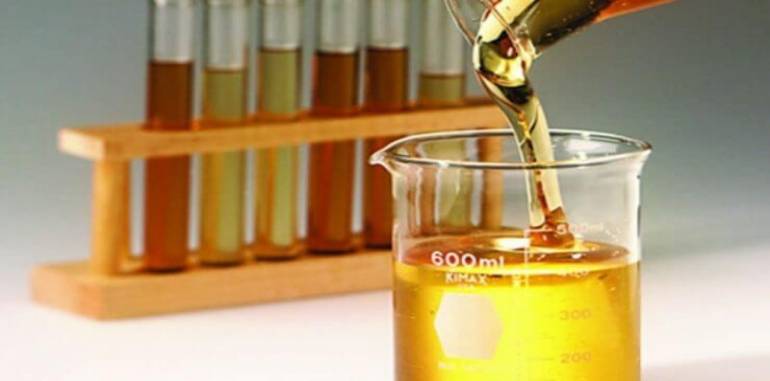

10. COLOR AND VISUAL INSPECTION

• Purpose: Provides a preliminary indication of the oil’s quality and aging.
• Importance: Discolored oil may contain contaminants or oxidation byproducts, which often suggest degradation.
• Testing Method: Oil color and clarity are visually inspected. Clear and bright oil usually indicates good quality, while dark or cloudy oil may require further analysis.

ADVANCED TESTS

For more complex transformers, additional tests may be conducted, including:

• Polychlorinated Biphenyls (PCB) Testing: PCBs were previously used as insulating fluids but are now banned due to health risks. This test ensures transformer oil is PCB-free.
• Oxidation Stability Test: Measures the oil's resistance to oxidation over time. High oxidation rates indicate the oil may need more frequent monitoring or replacement.
• Corrosive Sulfur Test: Detects corrosive sulfur compounds that can damage metal parts within the transformer.

INTERPRETING TRANSFORMER OIL TEST RESULTS

Understanding test results requires expertise, as different readings often need to be interpreted in conjunction with each other. Key points in interpreting results include:

• Comparing Against Standards: International standards like IEC 60296 and ASTM D3487 provide benchmarks for transformer oil quality.
• Trend Analysis: Regular oil testing over time allows for trend analysis, helping identify patterns in degradation and potential future issues.
• Correlation with Transformer Age: Older transformers tend to have degraded oil and insulation, so readings may vary based on the age and operational history of the transformer.

IMPORTANCE AND BENEFITS OF TRANSFORMER OIL TESTING

1.   Proactive Maintenance: Regular oil testing identifies potential issues early, allowing for preventive maintenance before major failures occur.

2.   Enhanced Reliability: Ensures the transformer remains operational and reduces the likelihood of unplanned outages.

3.   Extended Transformer Life: Monitoring and maintaining oil quality prevent accelerated wear and aging of the transformer.

4.   Cost Savings: Avoiding transformer failures and optimizing maintenance schedules reduce repair and replacement costs.

5.   Safety and Environmental Compliance: Transformer oil testing helps mitigate safety risks and ensures compliance with environmental standards by detecting hazardous contaminants.

FREQUENCY OF TESTING

The frequency of transformer oil testing depends on factors such as the transformer's age, load conditions, environmental factors, and previous test results. As a general guideline:

• New Transformers: Baseline testing before commissioning.
• In-service Transformers: Annual testing for routine monitoring, with additional tests if abnormal conditions are observed.
• Older Transformers: More frequent testing, especially if earlier results indicate degradation.

Transformer oil testing is essential for maintaining the health and reliability of transformers. Through comprehensive testing and analysis, utilities and industries can ensure safe operation, optimize performance, and extend the lifespan of their valuable electrical infrastructure.
