WHAT IS MECHANICAL TESTING?

Mechanical Testing evaluates the physical properties of materials, such as strength, toughness, elasticity, and hardness, to determine how materials respond to forces like tension, compression, and impact. It is widely used across industries, including automotive, aerospace, construction, and manufacturing, to assess materials like metals, polymers, ceramics, and composites. This type of testing is crucial for quality control, product development, regulatory compliance, and ensuring that materials perform as required in their intended applications.

OBJECTIVES OF MECHANICAL TESTING

Material Characterization: Identify the fundamental properties of a material, such as strength, ductility, hardness, and toughness.

Quality Assurance: Ensure materials and products meet quality standards and specifications.

Design Validation: Verify that materials can withstand intended operational loads and stresses.

Failure Analysis: Investigate causes of material failures to improve product design and safety.

Regulatory Compliance: Ensure materials meet industry standards and legal requirements.

TYPES OF MECHANICAL TESTING

There are several types of mechanical tests, each designed to measure specific properties of materials. The most common tests include:

1. Tensile Testing

• Purpose: Measures how much force a material can withstand while being stretched or pulled before breaking. It provides data on tensile strength, yield strength, elongation, and modulus of elasticity.
• Method: A sample is pulled apart at a constant rate until it fractures. The force and elongation are recorded.
• Applications: Used for metals, plastics, and polymers in industries where materials are subjected to pulling forces, like aerospace and construction.

2. Compression Testing

• Purpose: Measures a material's ability to resist compressive forces, evaluating its behavior under squashing or compressive loads.
• Method: A sample is compressed between two plates until it deforms or fractures, and force-deformation data is collected.
• Applications: Common for materials in structural applications such as building materials, ceramics, and metals used in construction and automotive industries.

3. Hardness Testing

• Purpose: Measures a material’s resistance to indentation or surface deformation, indicating wear resistance.
• Types of Hardness Tests:
• Rockwell Hardness Test: Measures hardness by applying a known force with an indenter and calculating the indentation depth.
• Brinell Hardness Test: Uses a hardened steel or carbide ball indenter to measure hardness by calculating the diameter of the indentation.
• Vickers Hardness Test: Uses a diamond pyramid-shaped indenter and is suitable for testing small or thin samples.
• Applications: Commonly used for metals, polymers, and ceramics across industries, including automotive and manufacturing.

4. Impact Testing

• Purpose: Assesses a material's toughness and ability to absorb energy when subjected to sudden impact.
• Types of Impact Tests:
• Charpy Impact Test: Measures the energy absorbed by a sample when struck by a swinging pendulum.
•   Similar to Charpy but has a different sample orientation and notch placement.
• Applications: Used for materials that may experience impact or sudden forces, such as automotive and aerospace components, to ensure they can withstand shocks.

5. Fatigue Testing

• Purpose: Evaluates a material's ability to withstand repeated, cyclic loading without failing, estimating its fatigue life.
• Method: A sample is subjected to cyclic stresses, often at different levels, to determine when failure occurs.
• Applications: Important for components in machinery, aerospace, and automotive applications where materials experience repeated loading.

6. Creep Testing

• Purpose: Measures a material’s behavior and rate of deformation under constant load and high temperatures over a prolonged period.
• Method: A sample is subjected to constant stress at an elevated temperature to observe deformation over time.
• Applications: Common in the power generation, aerospace, and construction industries where materials are exposed to high temperatures.

7. Flexural Testing (Bend Testing)

• Purpose: Assesses a material's behavior under bending or flexural forces, measuring properties like flexural strength and modulus.
• Method: A sample is supported at two ends and a force is applied in the middle, causing it to bend until it fractures.
• Applications: Used for brittle materials like ceramics, composites, and some metals in construction and automotive industries.

8. Shear Testing

• Purpose: Measures the ability of a material to resist forces that cause layers to slide against each other, assessing shear strength.
• Method: A sample is placed under opposing forces applied along parallel planes, causing shear deformation.
• Applications: Important for fasteners, adhesives, and materials in construction and mechanical joints.

9. Torsion Testing

• Purpose: Evaluates a material's response to twisting forces, measuring torsional strength, and rigidity.
• Method: A sample is clamped at one end and twisted at the other, recording force and angle of twist until failure.
• Applications: Common for shafts, rods, and other components subjected to torsional loads, especially in automotive and aerospace industries.

10. Fracture Toughness Testing

• Purpose: Determines a material's ability to resist crack propagation, providing an indication of its susceptibility to fracture.
• Method: A sample with a pre-existing crack is subjected to stress, and the energy required to propagate the crack is measured.
• Applications: Used in industries requiring high reliability, such as aerospace and nuclear power.

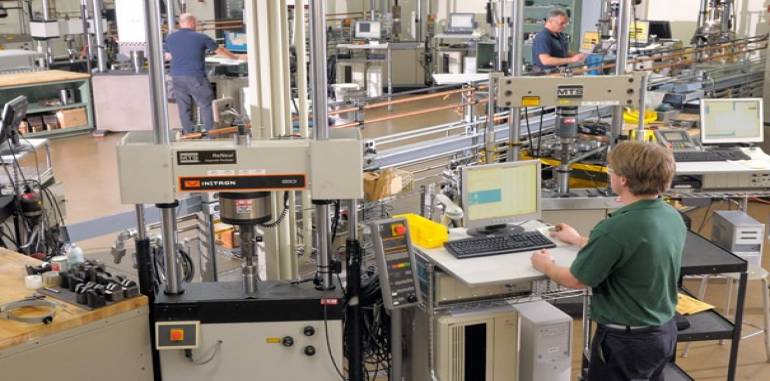

EQUIPMENT USED IN MECHANICAL TESTING

Mechanical testing requires specialized equipment, which varies based on the test type and the materials being tested. Key equipment includes:

1.   Universal Testing Machine (UTM): Used for tensile, compression, and flexural tests, UTMs can perform multiple tests by changing grips or fixtures.

2.   Impact Testers: Pendulum or drop weight testers for impact tests, such as Charpy and Izod.

3.   Hardness Testers: Includes Rockwell, Brinell, and Vickers hardness testing machines.

4.   Creep Testing Machine: Designed for high-temperature creep testing over long periods.

5.   Fatigue Testing Machine: Used to apply cyclic loads on materials to study fatigue properties.

6.   Torsion Testing Machine: Measures a material’s response to torsional forces.

7.   Microscopy Equipment: Used for examining fracture surfaces and microstructure analysis after testing.

STANDARDS AND GUIDELINES FOR MECHANICAL TESTING

Many standards guide mechanical testing to ensure consistent, reliable results and quality control across industries. Some widely used standards include:

1.   ASTM Standards:

o    ASTM E8: Tension testing for metals.

o    ASTM E18: Rockwell hardness testing for metals.

o    ASTM D790: Flexural testing for plastics.

o    ASTM E23: Charpy impact testing for metals.

2.   ISO Standards:

o    ISO 6892: Tensile testing for metallic materials.

o    ISO 6508: Rockwell hardness testing.

o    ISO 148-1: Charpy impact testing for metallic materials.

o    ISO 527: Tensile testing for plastics.

3.   EN Standards: European standards, including EN 10002 for tensile testing and EN 12390 for concrete strength testing.

APPLICATIONS OF MECHANICAL TESTING

Mechanical testing is essential in various industries to ensure product quality, reliability, and safety:

1.   Automotive: Tests components like engine parts, suspension systems, and structural materials to meet strength and durability standards.

2.   Aerospace: Verifies the reliability of materials like titanium alloys, composites, and high-performance metals used in aircraft and spacecraft.

3.   Construction: Assesses the strength of building materials such as concrete, steel, and composite materials to ensure structural safety.

4.   Manufacturing: Ensures machinery parts and tools meet strength and wear resistance requirements, reducing downtime.

5.   Electronics: Tests materials used in electronic components for durability and resilience against mechanical stresses.

6.   Medical Devices: Ensures that materials used in implants, surgical tools, and other devices can withstand the forces encountered in medical applications.

IMPORTANCE OF MECHANICAL TESTING

1.   Ensures Quality and Reliability: Verifies that materials and products meet design specifications and perform as expected.

2.   Reduces Failure Risk: Helps identify potential weak points in materials, reducing the chance of catastrophic failures in critical applications.

3.   Cost Savings: Reduces costs associated with recalls, warranty claims, and repairs by ensuring materials meet performance standards.

4.   Enhances Safety: Ensures materials used in construction, aerospace, and automotive industries are reliable and safe.

5.   Supports Regulatory Compliance: Helps manufacturers meet industry standards and legal requirements, facilitating market access.

6.   Improves Product Design: Provides data that helps engineers and designers optimize materials for strength, durability, and performance.

CHALLENGES IN MECHANICAL TESTING

1.   Complexity in Simulating Real Conditions: Replicating real-world stresses and environmental conditions can be challenging, especially in high-stakes industries like aerospace.

2.   Equipment Costs: High-quality testing machines and specialized equipment are costly, especially for high-frequency or fatigue testing.

3.   Material Variability: Some materials, especially natural composites, can have high variability in properties, affecting test reliability.

4.   Data Interpretation: Analyzing mechanical test data and translating it into meaningful product improvements requires specialized expertise.

SUMMARY

Mechanical testing is an essential process in quality control, design verification, and material selection across various industries.
